Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric

Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric
Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric

Large Image :  Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric

Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JINGANG
Certification: Oeko-Tex Standard 100, SGS
Model Number: HF80172
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: In rolls,Put each roll into plastic bag
Delivery Time: 2-3 days for lab-dip 5-7 days for approval sample of plain color 10-15 days for approval sample of printing pattern
Payment Terms: T/T
Supply Ability: yard/yards per month polyester fabric

Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric

Description
Materil: 100%P Weight: 190 GSM
Width: 57 / 58 '' Style: Double Layers
Yarn Count: 100+50+50*50+50 Index: P/D W/R Trzcot
High Light:

stretchy breathable fabric

,

lightweight breathable fabric



Double Layers Breathable Outdoor Fabric Dobby Cation With Trzcot For Garment





1 . Descriptions:



The fabric is double layers dobby cation with trzcot . The content of this fabric is 100%P . And its yarn count is 100+50+50*50+50. So  it has very high strength and wear resistant . After some finishing , it can be made waterproof and UV-proof .



Fabric composition can improve the original functional effects of fabrics, such as waterproof, breathable, moisture, warm, cold and wear-resistant.



Occording to its feature ,we always use this fabric in outdoor garment or eauipment , such as tent and bag.



2 . What's the difference between a composite fabric and a traditional one?



Composite fabric is the addition of a layer of cloth into the fabric. There are usually granulated flannelette, knitted fabric, TC cloth, net cloth, non-woven fabric, etc. Different functions have different composition methods. The traditional fabric is just ordinary weaving, which is just like that. It doesn't need to be processed in the back.



The difference is that different combinations are made for different crafts. For example sofa, want thickness and fastness, also want hand feeling, about to compound the stronger material with better.



3 . Features:



Fabrics woven from cationic modified fibers have the following properties when dyed with cationic dyes:

  • Bright color and good deep color;
  •  High absorption rate (high dyeing rate);
  • Good fastness to sunlight and fading color of smoke;
  • Good dye compatibility when color matching dyeing;
  •  Good stability in high-temperature dyeing bath;
  •  Less contamination to other fibers, including ordinary polyester fibers;
  • The diffusion rate to the inside of the fiber is fast and there is no ring dyeing;
  •  Dye stability is high when pH value changes in dyeing bath. Fabrics can be compared with natural fabrics in terms of wearing comfort and bright color, and lower in price than natural silk, which can generate high added value.



4 . Quality Control:



We have a complete set of quality control management system, according to the customer's requirements, our products will carry out various quality tests, in order to obtain higher quality .



Property Method Standard
Washing BS EN ISO 105 C06 Test A-C 3-4
Perspiration ISO 105 E04 3-4
Dye Transfer AATCC 163 3-4
Tear Strength EN ISO 13937-1 12N Below 80g ; 15N Above 80g
Seam Slippage EN ISO 13936-1 > 200N
Tensile Strength BS EN ISO 13934-2 > 35bl
Abrasion Resistance ASTM D3884-09 H-18WHEELASTM D3884-09 H-18WHEEL 500G/Wheel PU >1500r
Water Resistance AATCC-127-2008 3000/ 5000/ 8000 (according to customer requirements)
Air Permeability ASTM D737
Water Vapor Permeability ASTM E96 3000g /m2/ 24h
Bonding Strength Of Laminated Fabric AATCC-D2714-07 (Dry Cleaning) 17.2-2.2-2.3-2.4
PH   4.0-7.5




4 . Applications:



All the features above make this product higher than that of other companies in comfort and function .



Also , it can be used in home decoration and curtain.



5 . More pictures:

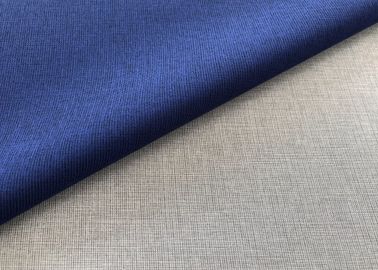

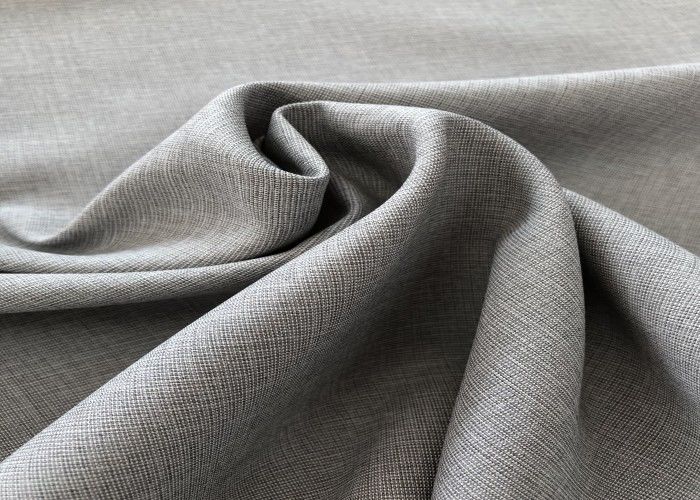

Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric 0

Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric 1

Double Layers Breathable Outdoor Fabric , 190GSM Breathable Water Resistant Fabric 2
