Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JANGANG
Certification: Oeko-Tex Standard 100, SGS
Model Number: HF-80121
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: In rolls,Put each roll into plastic bag
Delivery Time: 2-3 days for lab-dip 5-7 days for approval sample of plain color 10-15 days for approval sample of printing pattern
Payment Terms: T/T
Supply Ability: yard/yards per month polyester fabric

100% P Cationic Breathable Outdoor Fabric Coated Waterproof For Jacket

Description
Material: 100%P Yarn Count: 150D*150D
Weight: 167GSM Width: 57/58''
Style: Twill Finish: Coated
High Light:

lightweight breathable fabric

,

breathable polyester fabric



100%P Breathable Outdoor Twill Cationic Fabric Coated Waterproof For Jacket And Skiing Wear





1 . Descriptions:



This fabric is 150D*150D 100%P  coated  cationic fabric. It is  twill . And its yarn count is 150D*150D. It is finished in coated  , so it is waterproof and draped. Also ,we can do other finishing if you want to obtain other functions , just like lamination or bonding .



After this , it can be made waterproof and windproof . This fabric is always used to product winter wear , sports wear and etc.





2 . About Waterproof A nd Breathable Fabric:



The main functions of waterproof breathable fabric are: waterproof, moisture permeable, breathable, insulating, windproof and warm. In terms of production technology, the technical requirements of waterproof breathable fabric are much higher than that of ordinary waterproof fabric. At the same time, from the quality, waterproof breathable fabrics also have functional characteristics that other waterproof fabrics not have.



Waterproof breathable fabrics strengthen fabric tightness and water tightness , at the same time , its unique water vapor permeability, can make the internal water vapor flowing rapidly. This feature can avoid breeding mold and maintain the body dry all the time. This solves the problem between breathable and windproof, waterproof, heat preservation perfectly . It’s a new type of healthy and environmental-protection fabric.



3. Working Principle:



In the state of water vapor, water particles are very small. According to the principle of capillary movement, they can infiltrate the capillary to the other side smoothly, and thus have steam permeability. When the water vapor condense into water droplets, due to the effect of water surface tension which called ” pull against each other between water molecules”, water molecules cannot smoothly infiltrate to the other side. This becomes the prevention of the infiltration of water and makes the membrane had the function of waterproof.



4. Coating Methods:



Coating methods Process Functions
PU white adhesive coating a layer of white polyurethane resin is applied to the surface of the fabric

increase the covering rate of the cloth surface and will not penetrate the color . Also, it can make the cloth surface more colorful.



PU silver adhesive coating

a layer of silver-white adhesive is applied on the surface of the fabric



has the function of shading and preventing radiation
Oily gloss coating

have a smooth and glossy surface



Skin film coating pressing and coating the surface of the fabric to form the skin film

the front of the garment is made with the coating surface, which has the style of leather clothing. There are two kinds of sublight and light, and can add various colors to the coating to make color film and it will be very beautiful







5. More pictures:

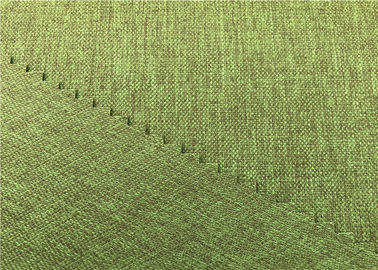

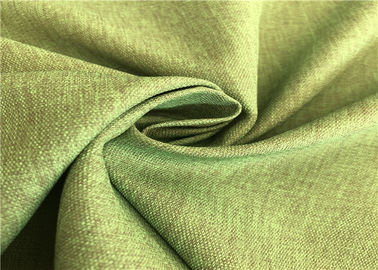

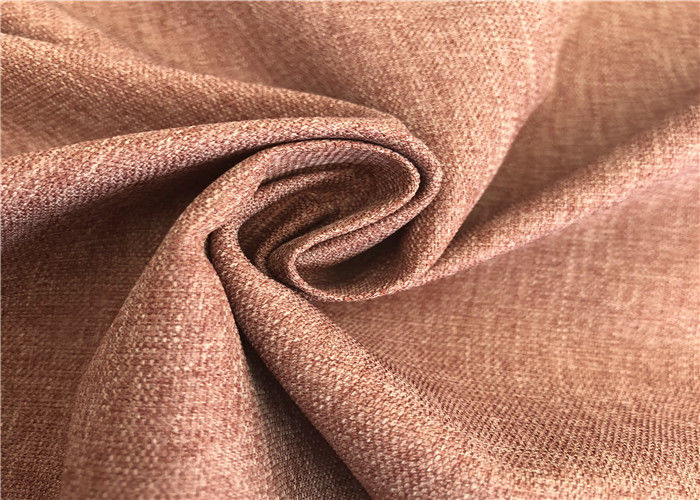

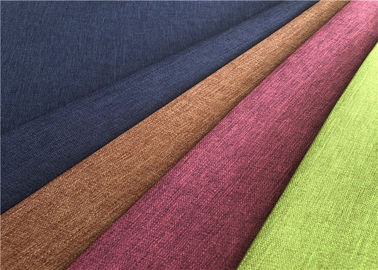

100% P Cationic Breathable Outdoor Fabric Coated Waterproof For Jacket 0

100% P Cationic Breathable Outdoor Fabric Coated Waterproof For Jacket 1

100% P Cationic Breathable Outdoor Fabric Coated Waterproof For Jacket 2
