Product Details:
|
Materil: | 50%N 50% P | Weight: | 155 GSM |
---|---|---|---|
Width: | 57 / 58 '' | Type: | Oxford Fabric |
Yarn Count: | 200D*160D*2 | Index: | P/D W/R TPU |
High Light: | lightweight breathable fabric,breathable polyester fabric |
Two-tone Taslon Oxford Breathable Outdoor Fabric With TPU membrance 3k / 3k (JIS) For Garment
1 . Descriptions:
The content of this oxford fabric is 50%N and 50%P . And its yarn count is 200D * 160D * 2 . So it has very high strength and wear resistant . After some finishing , it can be made waterproof and UV-proof .
Occording to its feature ,we always use this fabric in outdoor garment or eauipment , such as tent and bag.
2 . Specifications:
The main functions of waterproof breathable fabric are: waterproof, moisture permeable, breathable, insulating, windproof and warm. In terms of production technology, the technical requirements of waterproof breathable fabric are much higher than that of ordinary waterproof fabric.
Name | Oxford Fabric |
Material | 50%N +50%P |
Backing | PVC/TPU/PU, customize |
Yarn count | 200D * 160D * 2 |
Density | customize |
Weight | 155 GSM |
Width | 57/58'' |
Color | various colors available |
Standard | can meet REACH,ROHS,EN71-3 |
MOQ | 1000m |
Supply ability | 2000,000m monthly |
Loading QTY | around 40000m/20" container |
Packaging | by rolls as 50m or according to your requirements,polybags,vacuum packing |
Delivery | 10-15days |
Payment term | T/T |
3 . Quality Control:
We have a complete set of quality control management system, according to the customer's requirements, our products will carry out various quality tests, in order to obtain higher quality .
Property | Method | Standard |
Light | ISO 105 B02 | 3-4 |
Washing | BS EN ISO 105 C06 Test A-C | 3-4 |
Abrasion Resistance | EN ISO 12947-2 | Fabric >20000r |
Dye Transfer | AATCC 163 | 3-4 |
Tear Strength | EN ISO 13937-1 | 12N Below 80g ; 15N Above 80g |
Bursting Strength | BS EN ISO 13938 | > 40BL(knit) |
Tensile Strength | BS EN ISO 13934-2 | > 35bl |
Abrasion Resistance | ASTM D3884-09 H-18WHEELASTM D3884-09 H-18WHEEL 500G/Wheel | PU >1500r |
Pilling Resistance | EN ISO 12945-2 | 3-4 |
Water Repellency | AATCC-22-2010 | |
Water Resistance | AATCC-127-2008 | 3000/ 5000/ 8000 (according to customer requirements) |
Water Vapor Permeability | ASTM E96 | 3000g /m2/ 24h |
PH | 4.0-7.5 |
This kind of fabric can be used for leisure garment, such as outdoor jacket . And it has a wide range of uses .It is favored by outdoor clothing , especially in the autumn and winter season.
4 . Applications:
All the features above make this product higher than that of other companies in comfort and function .
Also , it can be used in home decoration and curtain.

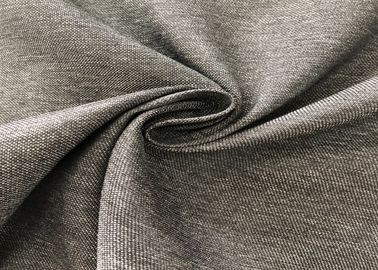

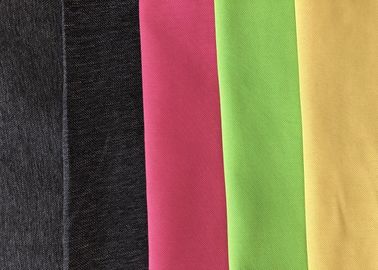

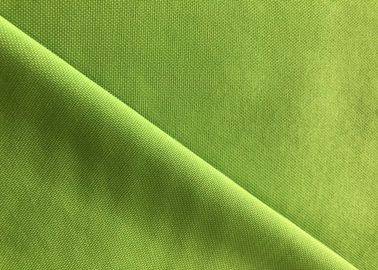

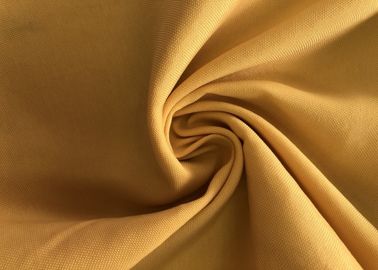

5 . More pictures:
