|Width:||57 / 58 ''||Function:||Water Repellent|
outdoor water resistant fabric,
waterproof clothing fabric
100%P Water Repellent Mechanical Stretch Outdoor Fabric Supplier Special For Outdoor Skiing Wear
1 . Descriptions:
The fabric is 100%P water repellent outdoor fabric. And it is also a kind of cationic fabric . Its yarn count is (75+75)+150D*(75+75)+150D . It is one kind of two-tone fabric . We finish it with P/D and W/R and coating . So it is waterproof .The fabric is commonly used in skiing wear and sports wear .
According to your requirments , we can do many processes of finishing to get different functions, just like coated , lamination ,bonding or etc.
2 . Specifications:
|Name||100%P Water Repellent Mechanical Stretch Outdoor Fabric|
|Backing||PD, WR ,Coating|
|Color||various colors available|
|Standard||can meet REACH,ROHS,EN71-3|
|Packaging||by rolls as 50m or according to your requirements,polybags,vacuum packing|
3 . About Cationic Fabric:
Cation are usually discolored by chemical agents. Generally, water of 60~100 degrees will not lead to cationic yarn fading.
The characteristics of cationic lie in the double color effect, which can replace some color woven double-color fabrics to reduce the cost, but there is nothing to be done with color woven fabrics. It's an old product. It is commonly used for lining/curtain fabric/decorative fabric.
Cationic fabric is not wear-resistant fabric, it is generally used in the warp direction with cationic silk, and in the weft direction with ordinary polyester yarns, which are also dyed with dyes respectively.
4. The warmth retention property of outdoor fabric:
Although heat preservation is closely related to fabric thickness, outdoor sports do not allow clothing to be too heavy, so it is necessary to keep warm and light to meet the special requirements of outdoor sports clothing. The most common method is to add special ceramic powder containing chromium oxide, magnesium oxide and zirconia, especially nano-sized ceramic powder, into the spinning solution of synthetic fiber such as polyester.
It can absorb the visible light such as sunlight and convert it into heat energy. It can also reflect the far infrared ray emitted by the human body itself.
5. About Coating Methods:
The principle of coating fabrics: With the use of solvents (toluene and butanone commonly nowadays ) , we dissolve the coating colloidal particles that we needed into salivate shape , which includes PU adhesive, A/C PVC, PE plastic and etc . And it is also related to the ratio of rubber and viscosity . And then coat on the fabric in a form of scraper evenly . After fixation inside the oven with a high temperature, there will be a uniform layer of covering material make on the surface of fabrics . As a result , the fabrics can achieve the waterproof, windproof, breathable, and other functions!
6 . Quality Control:
We have strict quality control system and professional quality control line and people.
|Washing||BS EN ISO 105 C06 Test A-C||3-4|
|Perspiration||ISO 105 E04||3-4|
|Light||ISO 105 B02||3-4|
|Dye Transfer||AATCC 163||3-4|
|Wet/Dry Crocking||EN ISO 105*12||3-4|
|Tear Strength||EN ISO 13937-1||12N Below 80g ; 15N Above 80g|
|Seam Slippage||EN ISO 13936-1||＞ 200N|
|Bursting Strength||BS EN ISO 13938||＞ 40BL(knit)|
|Tensile Strength||BS EN ISO 13934-2||＞ 35bl|
|Abrasion Resistance||ASTM D3884-09 H-18WHEELASTM D3884-09 H-18WHEEL 500G/Wheel||PU ＞1500r|
|Abrasion Resistance||EN ISO 12947-2||Fabric ＞20000r|
|Pilling Resistance||EN ISO 12945-2||3-4|
|Water Resistance||AATCC-127-2008||3000/ 5000/ 8000 (according to customer requirements)|
|Air Permeability||ASTM D737|
|Water Vapor Permeability||ASTM E96||3000g /m2/ 24h|
|Bonding Strength Of Laminated Fabric||AATCC-D2714-07 (Dry Cleaning)||17.2-2.2-2.3-2.4|

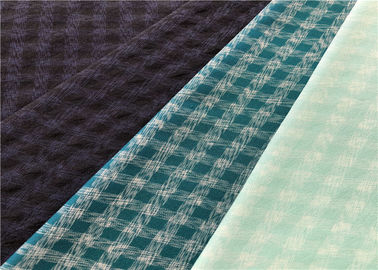

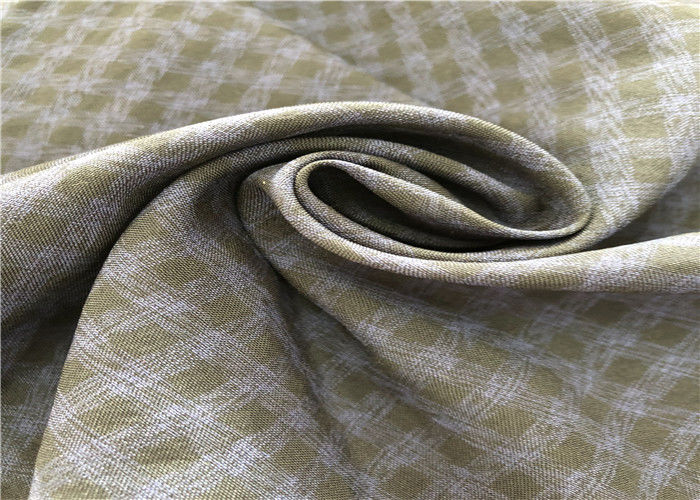

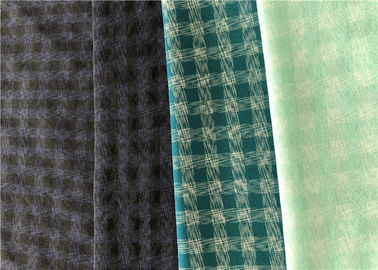

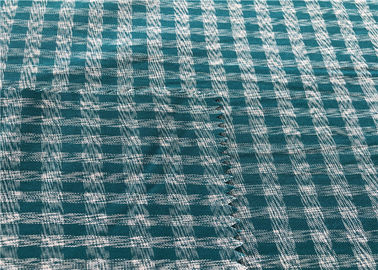

7 .More pictures:
